LLM 推理框架学习路线

以下内容为 AI 生成

下面我不再给“30天强行冲刺”的安排,而是按你要的顺序,整理一份LLM 推理框架研究地图
发展脉络 → 综述/论文 → 代码资源
重点面向后续做 LLM inference serving / AI Infra / Systems for ML 方向科研。


(1)LLM 推理框架发展的脉络

LLM 推理框架的发展,本质上是在解决几个核心矛盾:

  1. 模型越来越大,单卡放不下
  2. 上下文越来越长,KV Cache 显存压力巨大
  3. 用户请求长度不一致,GPU 利用率低
  4. Decode 阶段逐 token 生成,计算并行度差
  5. 线上服务既要低延迟,又要高吞吐

可以按下面这条主线理解。


1. 第一阶段:传统深度学习推理框架

早期 Transformer / BERT / GPT 推理主要依赖:

  • PyTorch eager mode
  • TensorFlow Serving
  • ONNX Runtime
  • TensorRT
  • Triton Inference Server

这些框架擅长优化普通深度学习模型,但面对 LLM 自回归生成时,有几个问题:

  • 不能很好处理动态长度输入
  • 对 KV Cache 管理不够细
  • Batch 内请求长度差异导致 padding 浪费
  • Decode 阶段 batch 很小、矩阵形状扁平,GPU 利用率不高

代表项目:

框架 作用 链接
NVIDIA TensorRT 通用高性能推理优化器 https://developer.nvidia.com/tensorrt
NVIDIA Triton Inference Server 通用推理服务框架 https://github.com/triton-inference-server/server
ONNX Runtime 跨平台推理框架 https://github.com/microsoft/onnxruntime

2. 第二阶段:Transformer 专用推理优化库

LLM 兴起前后,业界开始针对 Transformer 做专门优化。

代表是 NVIDIA FasterTransformer。它用 C++/CUDA 实现了高性能 Transformer kernels,支持 BERT、GPT、T5 等模型。后来 NVIDIA 官方也说明 FasterTransformer 的开发已转向 TensorRT-LLM。[1]

框架 特点 链接
FasterTransformer C++/CUDA Transformer 推理优化库 https://github.com/NVIDIA/FasterTransformer
DeepSpeed-Inference 微软分布式推理优化 https://github.com/microsoft/DeepSpeed
TurboTransformers 腾讯 Transformer 推理优化库 https://github.com/Tencent/TurboTransformers

这一阶段的关键词是:

  • kernel fusion
  • tensor parallelism
  • pipeline parallelism
  • FP16 / INT8
  • GEMM 优化
  • Faster attention kernel

但它们还没有很好解决 LLM serving 中最重要的系统问题:
动态请求调度 + KV Cache 显存管理 + 高并发服务吞吐。


3. 第三阶段:连续批处理与 LLM Serving 系统

LLM 线上服务和普通模型推理不同。

传统推理通常是:

收集一批请求 → 一起 forward → 返回结果

但 LLM 是逐 token 生成:

prefill prompt → decode token1 → decode token2 → decode token3 → ...

不同用户请求的 prompt 长度、生成长度都不同。如果用普通 batch,很容易出现:

  • 短请求等长请求
  • batch 中大量 padding
  • GPU 空闲
  • 服务延迟不稳定

因此出现了 continuous batching / iteration-level scheduling

代表性系统是 Orca

技术 解决问题 论文 / 项目
Iteration-level scheduling 每生成一步动态调整 batch https://www.usenix.org/conference/osdi22/presentation/yu
Continuous batching 动态插入新请求,提高 GPU 利用率 https://github.com/huggingface/text-generation-inference

这一步奠定了现代 LLM 推理框架的服务形态。


4. 第四阶段:KV Cache 成为核心瓶颈,PagedAttention 出现

LLM 推理中,KV Cache 是最大瓶颈之一。

每个请求都会保存每一层 attention 的 Key / Value:

KV Cache size ≈ batch_size × sequence_length × num_layers × num_heads × head_dim × 2

当:

  • batch 大
  • 上下文长
  • 模型层数多
  • 并发用户多

KV Cache 会占用大量显存。

传统做法通常为每个请求预分配连续显存,问题是:

  • 内存碎片严重
  • 预分配浪费
  • beam search / parallel sampling 下 KV 共享困难

vLLM / PagedAttention 的核心贡献是:
把 KV Cache 管理成类似操作系统虚拟内存的分页结构。

也就是:

逻辑 token block → 物理 KV block

这样可以:

  • 非连续分配 KV Cache
  • 减少显存碎片
  • 支持请求间 KV 共享
  • 提升吞吐

PagedAttention 是 vLLM 的核心技术,论文发表在 SOSP 2023。[2]

框架 核心机制 链接
vLLM PagedAttention + continuous batching https://github.com/vllm-project/vllm
vLLM 文档 官方使用与架构说明 https://docs.vllm.ai/
PagedAttention 论文 SOSP 2023 https://dl.acm.org/doi/10.1145/3600006.3613165

5. 第五阶段:Attention Kernel 优化,FlashAttention 系列成为基础设施

LLM 推理中,Attention 既消耗算力,也消耗显存带宽。

普通 attention 会显式构造:

QK^T attention matrix

长序列时开销巨大。

FlashAttention 的关键思想是:

  • 不显式 materialize 完整 attention matrix
  • 分块计算 attention
  • 利用 GPU SRAM / shared memory
  • 减少 HBM 读写
  • 保持数值稳定的 online softmax

代表论文:

技术 作用 链接
FlashAttention IO-aware exact attention https://arxiv.org/abs/2205.14135
FlashAttention-2 更好利用 GPU 并行度 https://arxiv.org/abs/2307.08691
FlashAttention GitHub 官方代码 https://github.com/Dao-AILab/flash-attention

对推理框架来说,FlashAttention 主要影响:

  • prefill 阶段长 prompt attention
  • 长上下文推理
  • 多模态长序列输入
  • 高性能 attention kernel 实现

6. 第六阶段:TensorRT-LLM / TGI / LMDeploy 等生产级框架成熟

LLM 商业化后,推理框架开始分化为几类:

类型 代表框架 特点
高吞吐研究/工程框架 vLLM PagedAttention,易用,适合研究
NVIDIA 生态生产框架 TensorRT-LLM TensorRT 编译优化,高性能 kernel,多 GPU 通信
HuggingFace 生产服务 TGI Rust + Python,稳定服务,生态好
国内工程框架 LMDeploy TurboMind,量化,多卡部署
编程模型 + 推理 runtime SGLang 面向复杂 LLM 程序、agent、structured generation
本地轻量推理 llama.cpp CPU / Metal / CUDA,量化友好

NVIDIA 官方介绍 TensorRT-LLM 是面向 NVIDIA GPU 的开源 LLM 推理优化库,包含优化 kernels、多 GPU / 多节点通信 primitives,并提供 Python API。[3]

框架 链接
TensorRT-LLM https://github.com/NVIDIA/TensorRT-LLM
TensorRT-LLM 官方介绍 https://developer.nvidia.com/tensorrt-llm
HuggingFace TGI https://github.com/huggingface/text-generation-inference
LMDeploy https://github.com/InternLM/lmdeploy
SGLang https://github.com/sgl-project/sglang
llama.cpp https://github.com/ggerganov/llama.cpp

7. 第七阶段:Decode 加速与 Speculative Decoding

LLM decode 阶段有一个天然问题:

每次只能生成下一个 token

这导致并行度差。

Speculative Decoding 的核心思想是:

  1. 用一个小模型 draft model 快速猜多个 token
  2. 用大模型 target model 一次性验证这些 token
  3. 如果猜对,就一次接受多个 token
  4. 如果猜错,从错误位置重新采样

这样能减少大模型 forward 次数。

NVIDIA TensorRT-LLM 已支持 speculative decoding,并在官方博客中报告可显著提升总 token 吞吐。[4]

技术 作用 链接
Speculative Decoding 用小模型草稿 + 大模型验证 https://arxiv.org/abs/2211.17192
Fast Inference from Transformers via Speculative Decoding 经典 speculative decoding 论文 https://arxiv.org/abs/2211.17192
TensorRT-LLM Speculative Decoding 工业实现说明 https://developer.nvidia.com/blog/tensorrt-llm-speculative-decoding-boosts-inference-throughput-by-up-to-3-6x/
Medusa 多头预测加速 decode https://arxiv.org/abs/2401.10774
Lookahead Decoding 无 draft model 的并行 decode https://arxiv.org/abs/2402.02057

8. 第八阶段:长上下文、MoE、多机多卡、异构推理

目前比较前沿的方向包括:

方向 典型问题
长上下文推理 1M tokens context,KV Cache 放不下
KV Cache 压缩 降低显存占用
Prefix Cache / Prompt Cache 多请求共享 prefix
MoE 推理 expert routing、expert parallel、load balance
多机多卡推理 tensor parallel、pipeline parallel、expert parallel
异构推理 GPU + CPU + SSD offloading
structured generation JSON / grammar constrained decoding
multimodal inference 图像 token / 视频 token 造成更大上下文压力

代表框架:

框架 / 项目 方向 链接
SGLang LLM 程序执行、structured generation、高性能 runtime https://github.com/sgl-project/sglang
DeepSpeed-FastGen 长 prompt 下的高吞吐文本生成 https://arxiv.org/abs/2401.08671
TensorRT-LLM NVIDIA 高性能生产推理 https://github.com/NVIDIA/TensorRT-LLM
DeepSpeed-MII 微软模型推理服务 https://github.com/microsoft/DeepSpeed-MII

(2)LLM 推理框架对应的综述和论文

我建议你把论文分成 综述类、系统类、kernel 类、调度类、decode 加速类、长上下文类、量化类 来读。


A. 综述类:先建立全局地图

主题 名称 链接 建议
Efficient Transformers 综述 Efficient Transformers: A Survey https://arxiv.org/abs/2009.06732 了解 attention 优化大背景
LLM 高效推理综述 A Survey on Efficient Inference for Large Language Models https://arxiv.org/abs/2404.14294 直接对应 LLM inference
LLM 推理系统综述 LLM Inference Unveiled: Survey and Roofline Model Insights https://arxiv.org/abs/2402.16363 适合系统研究视角
Serving systems 综述线索 NVIDIA LLM inference benchmarking https://developer.nvidia.com/blog/llm-inference-benchmarking-performance-tuning-with-tensorrt-llm/ 工程指标、benchmark 入门

B. LLM Serving / 推理系统核心论文

论文 会议 / 年份 核心贡献 链接
Orca: A Distributed Serving System for Transformer-Based Generative Models OSDI 2022 iteration-level scheduling,continuous batching https://www.usenix.org/conference/osdi22/presentation/yu
Efficient Memory Management for Large Language Model Serving with PagedAttention SOSP 2023 PagedAttention,KV Cache 分页管理 https://dl.acm.org/doi/10.1145/3600006.3613165
DeepSpeed-FastGen 2024 Dynamic SplitFuse,优化长 prompt 服务吞吐 https://arxiv.org/abs/2401.08671
Sarathi-Serve 2024 chunked prefill,混合 prefill/decode 调度 https://arxiv.org/abs/2403.02310
FlexGen ICML 2023 GPU/CPU/SSD offloading,低资源推理大模型 https://arxiv.org/abs/2303.06865

C. Attention / Kernel 优化论文

论文 核心贡献 链接
FlashAttention IO-aware exact attention,减少 HBM 访问 https://arxiv.org/abs/2205.14135
FlashAttention-2 更高 GPU 利用率,更优并行划分 https://arxiv.org/abs/2307.08691
FlashDecoding++ 针对 LLM decoding 的 GPU kernel 优化 https://arxiv.org/abs/2311.01282
xFormers Facebook attention / transformer kernel 工具库 https://github.com/facebookresearch/xformers

D. Speculative Decoding / Decode 加速论文

论文 核心贡献 链接
Fast Inference from Transformers via Speculative Decoding draft model + target model 验证 https://arxiv.org/abs/2211.17192
SpecInfer speculative inference serving system https://arxiv.org/abs/2305.09781
Medusa 多个 decoding heads 预测后续 token https://arxiv.org/abs/2401.10774
Lookahead Decoding 不依赖 draft model 的并行解码 https://arxiv.org/abs/2402.02057
PLD+ 利用 language model artifacts 加速推理 https://arxiv.org/abs/2412.01447

E. KV Cache / 长上下文推理论文

论文 核心贡献 链接
StreamingLLM attention sink,支持 streaming long-context https://arxiv.org/abs/2309.17453
H2O: Heavy-Hitter Oracle KV Cache eviction / 压缩 https://arxiv.org/abs/2306.14048
FastGen adaptive KV cache compression https://arxiv.org/abs/2310.01801
LongLoRA 长上下文扩展训练方法,也影响推理场景 https://arxiv.org/abs/2309.12307
Ring Attention 长序列分布式 attention https://arxiv.org/abs/2310.01889

F. 量化与低精度推理论文

论文 核心贡献 链接
SmoothQuant 激活和权重量化平滑,支持 W8A8 https://arxiv.org/abs/2211.10438
GPTQ post-training quantization for GPT https://arxiv.org/abs/2210.17323
AWQ activation-aware weight quantization https://arxiv.org/abs/2306.00978
SpQR 稀疏量化大模型 https://arxiv.org/abs/2306.03078
BitNet 低比特 LLM 方向 https://arxiv.org/abs/2310.11453

(3)适合学习的入门代码、科研界代码和学术界代码

下面按学习路径分三层。


3.1 入门代码:适合建立直觉

这部分目标不是性能,而是帮你理解:

  • Transformer forward
  • KV Cache
  • prefill / decode
  • sampling
  • attention
  • simple batching

A. nanoGPT

项目 链接
nanoGPT https://github.com/karpathy/nanoGPT

适合看:

model.py

你应该重点理解:

  • causal self-attention
  • attention mask
  • block size
  • autoregressive generation
  • generate() 函数

缺点:
它不是 LLM serving 框架,也没有复杂 KV Cache 管理。


B. HuggingFace Transformers

项目 链接
Transformers https://github.com/huggingface/transformers
generation utils https://github.com/huggingface/transformers/blob/main/src/transformers/generation/utils.py

适合看:

  • generate()
  • past_key_values
  • greedy search
  • beam search
  • sampling
  • logits processor
  • stopping criteria

这是理解 LLM 推理 API 语义最好的入口。


C. llama.cpp

项目 链接
llama.cpp https://github.com/ggerganov/llama.cpp

适合学习:

  • 本地推理
  • GGUF 模型格式
  • 量化
  • KV Cache
  • CPU / GPU 后端
  • speculative decoding 的工程实现

如果你 CUDA 不熟,llama.cpp 是非常好的入门工程,因为它相对独立,不依赖庞大的 PyTorch runtime。


D. minGPT

项目 链接
minGPT https://github.com/karpathy/minGPT

比 nanoGPT 更教学化,适合理解 Transformer 结构。


3.2 科研界 / 工程研究代码:适合做 AI Infra 研究

这部分是你真正应该长期精读和改造的。


A. vLLM

项目 链接
vLLM GitHub https://github.com/vllm-project/vllm
vLLM 文档 https://docs.vllm.ai/
PagedAttention 论文 https://dl.acm.org/doi/10.1145/3600006.3613165

建议重点看:

vllm/core/
vllm/engine/
vllm/worker/
vllm/model_executor/
vllm/attention/
csrc/

核心模块:

模块 学什么
scheduler 请求调度、continuous batching
block_manager KV Cache block 分配与回收
attention backend PagedAttention / FlashAttention 后端
worker 多 GPU worker 执行
engine serving 主循环

vLLM 是最适合做论文起点的框架之一。

适合研究方向:

  • KV Cache 管理
  • 长上下文调度
  • speculative decoding integration
  • prefix caching
  • 多租户 serving
  • prefill/decode disaggregation
  • heterogenous serving

B. SGLang

项目 链接
SGLang https://github.com/sgl-project/sglang
SGLang 文档 https://docs.sglang.ai/

适合学习:

  • LLM 程序执行
  • structured generation
  • regex / JSON constrained decoding
  • RadixAttention
  • prefix cache
  • 高性能 runtime

如果你对 agent / RAG / structured output / 多轮复杂调用 感兴趣,SGLang 比 vLLM 更适合作为研究入口。


C. TensorRT-LLM

项目 链接
TensorRT-LLM GitHub https://github.com/NVIDIA/TensorRT-LLM
TensorRT-LLM 官方页面 https://developer.nvidia.com/tensorrt-llm
TensorRT-LLM speculative decoding blog https://developer.nvidia.com/blog/tensorrt-llm-speculative-decoding-boosts-inference-throughput-by-up-to-3-6x/

适合学习:

  • NVIDIA GPU 上极致推理优化
  • TensorRT 编译优化
  • fused kernels
  • multi-GPU communication
  • speculative decoding
  • FP8 / INT8 / INT4
  • production deployment

缺点:
代码复杂度较高,不建议作为第一个精读项目。


D. HuggingFace Text Generation Inference, TGI

项目 链接
TGI https://github.com/huggingface/text-generation-inference

适合学习:

  • 生产级 LLM serving
  • Rust + Python 架构
  • streaming response
  • tensor parallel
  • continuous batching
  • metrics / tracing / deployment

如果你关心生产部署和服务可靠性,TGI 值得看。


E. LMDeploy

项目 链接
LMDeploy https://github.com/InternLM/lmdeploy
LMDeploy 文档 https://lmdeploy.readthedocs.io/

适合学习:

  • TurboMind
  • C++/CUDA 推理引擎
  • INT4 / INT8 量化
  • tensor parallel
  • OpenAI-compatible server

F. DeepSpeed-MII / DeepSpeed-FastGen

项目 / 论文 链接
DeepSpeed https://github.com/microsoft/DeepSpeed
DeepSpeed-MII https://github.com/microsoft/DeepSpeed-MII
DeepSpeed-FastGen 论文 https://arxiv.org/abs/2401.08671

适合学习:

  • 分布式推理
  • 长 prompt serving
  • Dynamic SplitFuse
  • 和 DeepSpeed 训练生态的衔接

3.3 学术界代码:适合复现论文和找研究问题

下面这些项目更贴近论文实现或学术 prototype。


A. FlexGen

项目 链接
FlexGen GitHub https://github.com/FMInference/FlexGen
FlexGen 论文 https://arxiv.org/abs/2303.06865

适合学习:

  • GPU / CPU / SSD offloading
  • 资源受限环境下推理
  • inference cost model
  • batch scheduling

这是非常典型的系统论文代码。


B. FlashAttention

项目 链接
FlashAttention GitHub https://github.com/Dao-AILab/flash-attention
FlashAttention 论文 https://arxiv.org/abs/2205.14135
FlashAttention-2 论文 https://arxiv.org/abs/2307.08691

适合学习:

  • CUDA kernel
  • tiling
  • shared memory
  • IO complexity
  • online softmax
  • attention backward / forward 优化

如果你要做 kernel 方向,这是必读代码。


C. xFormers

项目 链接
xFormers https://github.com/facebookresearch/xformers

适合学习:

  • 多种 attention kernel
  • memory efficient attention
  • PyTorch extension
  • attention backend 设计

D. Speculative Decoding / Medusa

项目 / 论文 链接
Speculative Decoding 论文 https://arxiv.org/abs/2211.17192
Medusa GitHub https://github.com/FasterDecoding/Medusa
Medusa 论文 https://arxiv.org/abs/2401.10774

适合学习:

  • draft / verify 机制
  • tree-based decoding
  • 多 token prediction
  • 与 serving 框架结合的难点

E. StreamingLLM

项目 / 论文 链接
StreamingLLM GitHub https://github.com/mit-han-lab/streaming-llm
StreamingLLM 论文 https://arxiv.org/abs/2309.17453

适合学习:

  • 长上下文推理
  • attention sink
  • KV Cache eviction
  • streaming generation

F. H2O

项目 / 论文 链接
H2O GitHub https://github.com/FMInference/H2O
H2O 论文 https://arxiv.org/abs/2306.14048

适合学习:

  • KV Cache pruning
  • heavy hitter tokens
  • 长上下文 memory reduction

G. AWQ / GPTQ / SmoothQuant

项目 / 论文 链接
AWQ GitHub https://github.com/mit-han-lab/llm-awq
AWQ 论文 https://arxiv.org/abs/2306.00978
GPTQ 论文 https://arxiv.org/abs/2210.17323
AutoGPTQ https://github.com/AutoGPTQ/AutoGPTQ
SmoothQuant GitHub https://github.com/mit-han-lab/smoothquant
SmoothQuant 论文 https://arxiv.org/abs/2211.10438

适合学习:

  • post-training quantization
  • weight-only quantization
  • W8A8
  • W4A16
  • 量化和 serving 框架结合

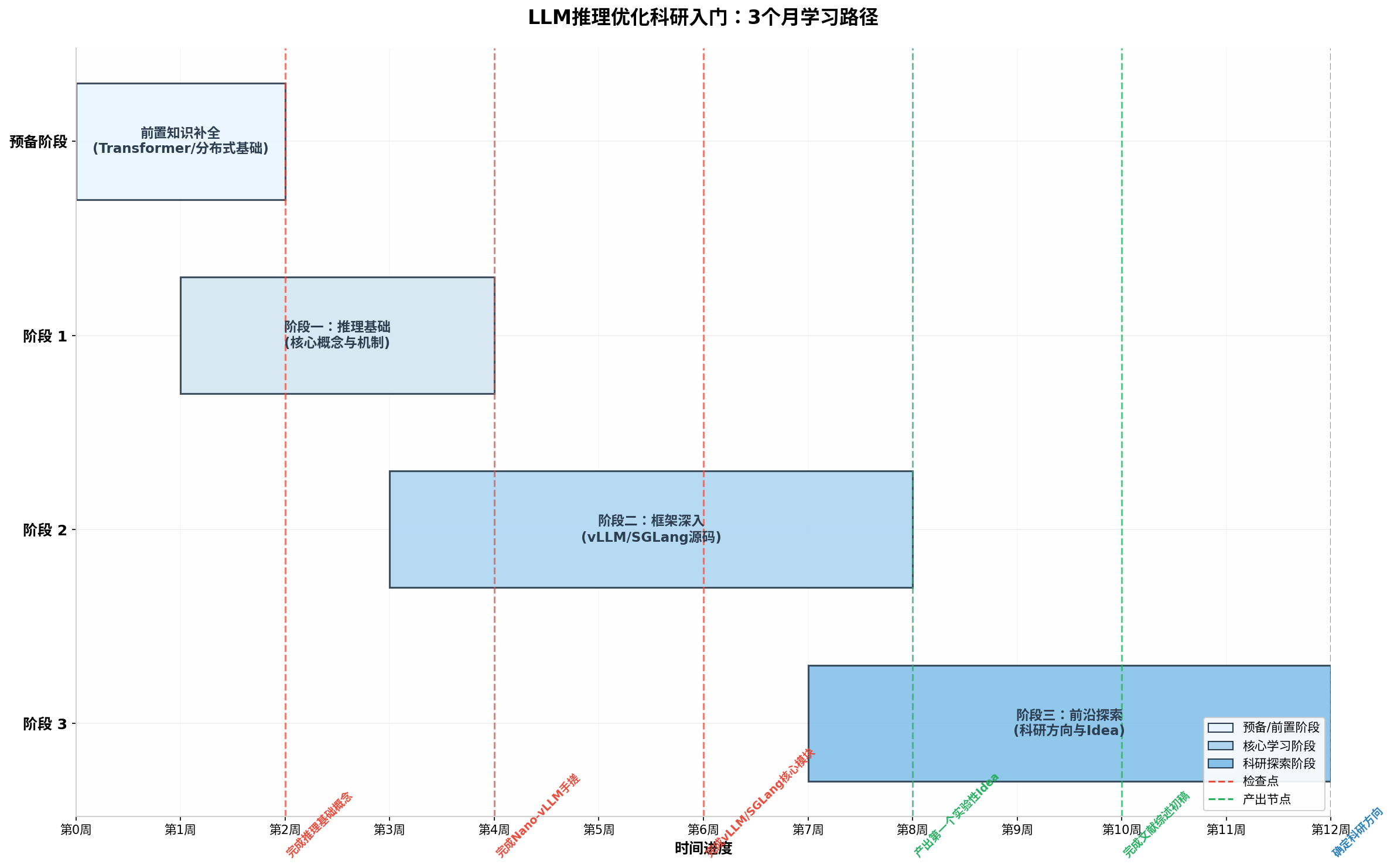

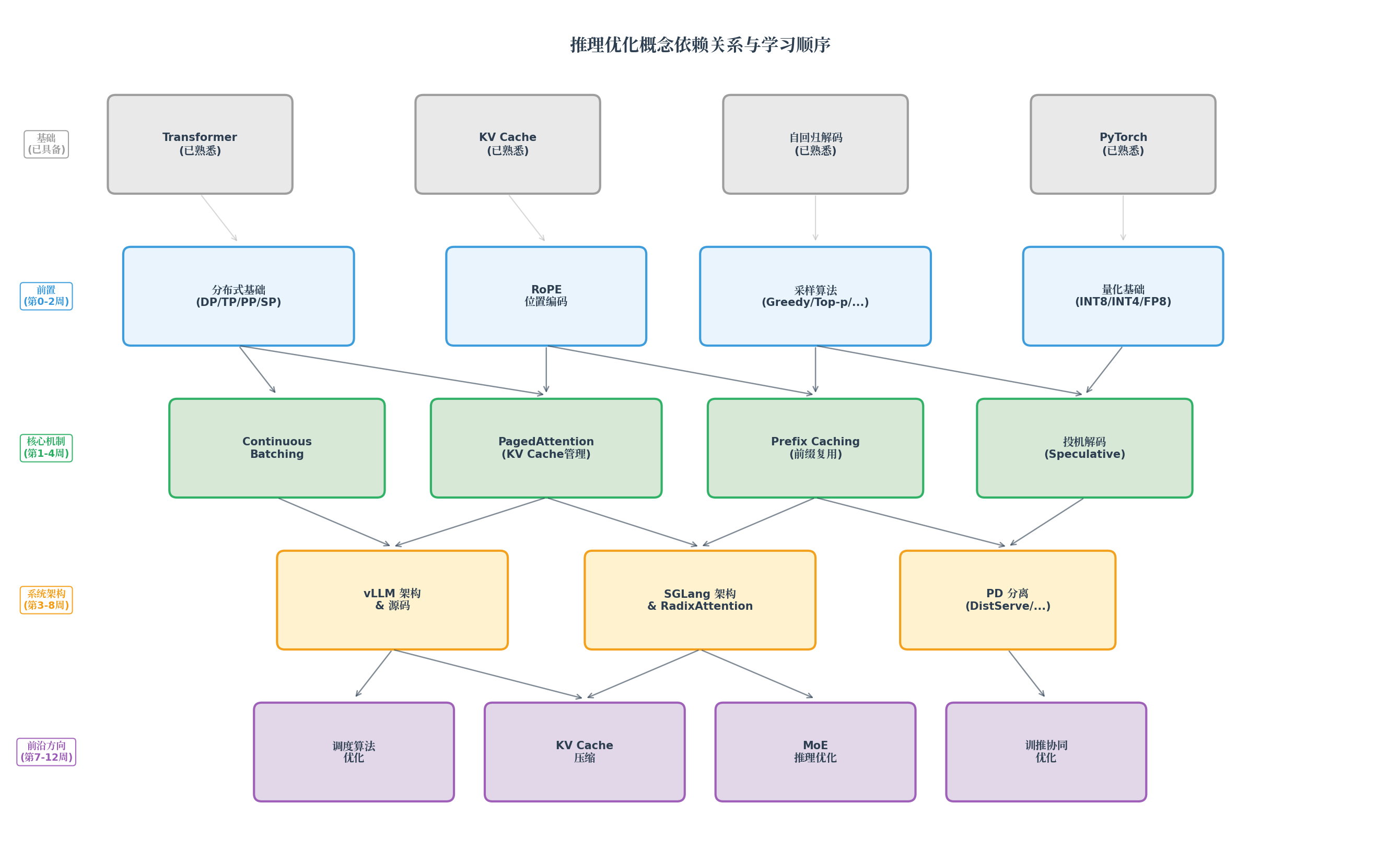

推荐你实际阅读 / 学习顺序

如果你现在 PyTorch 分布式和 CUDA 都不熟,我建议不要从 TensorRT-LLM 或 FlashAttention CUDA kernel 开始。

更合理的顺序是:

第一层:理解 LLM 推理语义

  1. nanoGPT
    https://github.com/karpathy/nanoGPT

  2. HuggingFace generation
    https://github.com/huggingface/transformers/blob/main/src/transformers/generation/utils.py

  3. llama.cpp
    https://github.com/ggerganov/llama.cpp


第二层:理解 LLM serving 系统

  1. Orca
    https://www.usenix.org/conference/osdi22/presentation/yu

  2. vLLM / PagedAttention
    https://github.com/vllm-project/vllm
    https://dl.acm.org/doi/10.1145/3600006.3613165

  3. TGI
    https://github.com/huggingface/text-generation-inference

  4. SGLang
    https://github.com/sgl-project/sglang


第三层:理解 kernel / 底层优化

  1. FlashAttention
    https://github.com/Dao-AILab/flash-attention
    https://arxiv.org/abs/2205.14135

  2. xFormers
    https://github.com/facebookresearch/xformers

  3. FasterTransformer
    https://github.com/NVIDIA/FasterTransformer

  4. TensorRT-LLM
    https://github.com/NVIDIA/TensorRT-LLM


第四层:寻找科研问题

可以优先围绕这些方向找问题:

方向 为什么值得做
KV Cache 管理 显存瓶颈长期存在
Prefix caching 多用户共享上下文,实际服务价值大
Prefill / Decode 分离 工业界和学术界都在关注
Speculative decoding serving 单请求有效,但系统层调度仍有很多问题
长上下文推理 1M context 下系统瓶颈巨大
MoE serving expert routing + 通信 + batch 不均衡
异构推理 GPU 昂贵,CPU/SSD offload 仍有价值
多租户 LLM serving 真实云服务场景重要
Structured generation serving JSON / function calling 越来越重要

最后总结

如果你想做 LLM 推理框架方向科研,建议把主线抓成一句话:

LLM 推理框架的发展,是从“单模型高性能 kernel 优化”,逐渐走向“面向动态请求、长上下文、KV Cache、分布式、多租户和复杂生成程序的系统优化”。

最重要的三篇起点论文是:

  1. Orca:理解 continuous batching
    https://www.usenix.org/conference/osdi22/presentation/yu

  2. PagedAttention / vLLM:理解 KV Cache 系统化管理
    https://dl.acm.org/doi/10.1145/3600006.3613165

  3. FlashAttention:理解 attention kernel 为什么是 IO-bound 问题
    https://arxiv.org/abs/2205.14135

最适合你开始精读的三个代码库是:

  1. nanoGPT:理解模型生成逻辑
    https://github.com/karpathy/nanoGPT

  2. vLLM:理解现代 LLM serving 框架
    https://github.com/vllm-project/vllm

  3. SGLang:理解新一代 LLM runtime 和复杂生成服务
    https://github.com/sgl-project/sglang


参考链接

评论
